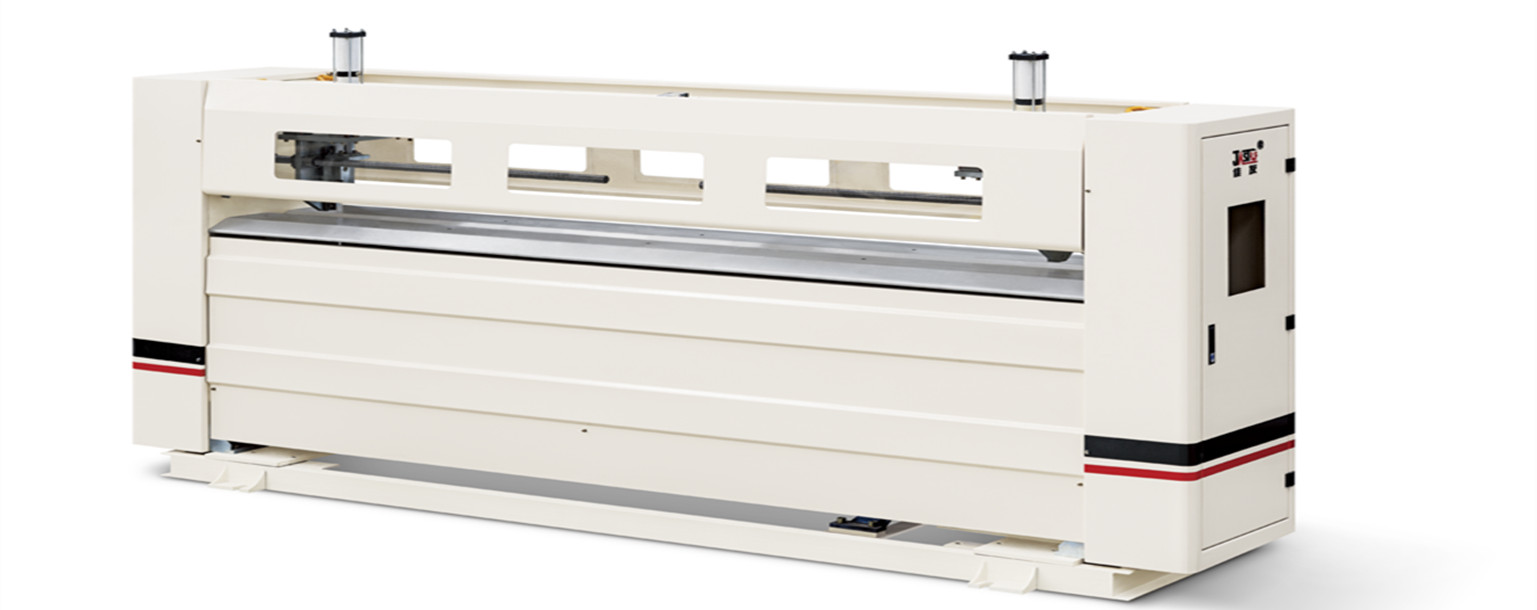

This equipment is necessary to realize high efficiency production of production line.
It main functions are to cut off at alternating part of waste board edge prior to order
change so as to facilitate board edge to enter air-sucking opening of cutoff machine,
providing guarantee for non-stop order changing.
Electric & Pneumatic part
Shanghai Futian VF Motor, Li Jiu VF Motor
Due to powerful top quality cylinder, board edges can be quickly cut off;
Pneumatic components from Air Tac
Actuation Part
Blades are made of high-quality tool steel T10;
Guide beams are made with high-quality seamless steel tubes by welding and
then treated and machined precisely in time.
Transmission Part
With Germany imported screws shaft and sliding rails, transmission precision
is guaranteed, and transmission error is reduced
Imported motor reducer is to serve imported synchronous belt wheel
Control Part
Operation Monitoring: Schneider touch screen
Monitor Control: Schneider PLC, Sick series sensor
Low-voltage Apparatus: Schneider
Production line speed can be tracked, so that instant cutting can be realized easily;
The equipment can be connected with production management system to cut off on
accurate position, thereby reducing order changing waste;
Cutting is realized through impact drum to ensure the boards could be cut off completely
with strong impact without any failure to cut off.
The power of motor is small and the motor does not work while boards are not being cut,
so that energy is greatly saved.
