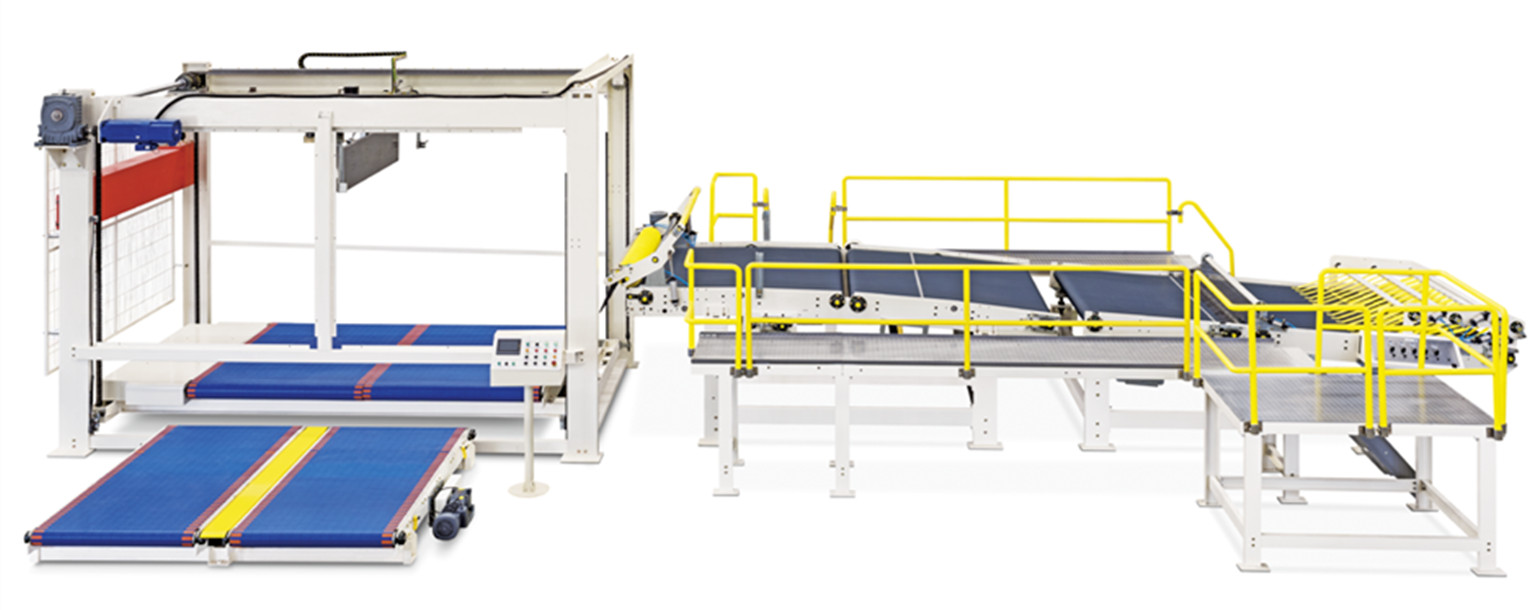

The Gantry Type Servo Up and Down Stacker could be able to finish cycling process of automatic board stacking, batching, stacking and transverse discharge. Its end conveying platform and suspension basket transverse discharge form counterweight
to each other which greatly reduces cycling time of batches in combination with unique designing of lifting and improves production efficiency and lowers energy consumption .and also could be used for corrugated board production lines.

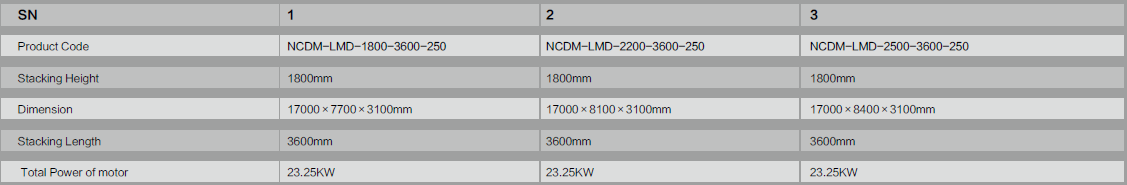

Electric & Pneumatic part
PHASE AC Servo Motor
Shanghai Futian VF Motor
Pneumatic components from SMC, Air Tac
Actuation Part
High quality hot-rolled channel steel frame
Conveying rollers made of high-quality steel tubes and precisely-drawn
steel tubes which are subject to dynamic balance checking
Switzerland Rapplon conveying belt
Module conveying belt imported from Denmark
Transmission Part
Imported synchronous belt
HRB precision bearing
Imported coupling
Control Part
Lifting control of suspension basket platform: servo motor
Conveying control of conveying segment: Schneider frequency converter
Control of rear baffle: servo motor
Operation monitoring: industrial computer or Schneider touch screen
Monitoring control: Schneider PLC, Sick sensor
Low-voltage apparatus: Schneider
The control system of master and slave computer is formed by high quality human-computer interface
and high performance PLC, and can be connected with production management system;
Multi-group carbon fiber brushes are controlled independently that can ensure the boards to be neatly
stacked at different line speeds and for different slitting lengths;
Multiple segments of conveying belts are driven by separate VF motor, so that the speed of the
conveying belt can automatically track the production line speed to complete board stacking, batching
and order changing for different lengths of boards at different line speeds and complete cycle operation
automatically;
The gantry conveying end is connected with suspension basket transverse discharge device through
chains and both of them form counterweight to each other and realize synchronous lifting to reduce
energy consumption and shorten switching time of batches and then improve production line speed; the
servo motor controls synchronous lifting to ensure stable and neat stacking and stable operation.
The position of board baffle can be adjusted automatically, so as to suit different lengths of boards; the
baffle could be lifted vertically to neatly stack the boards.
Realize multi-order stacking, which is applicable to small order stacking;
